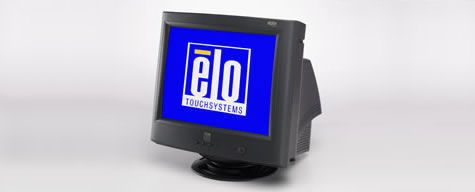

1726C 17" CRT Touchmonitor (Discontinued November 2006)
Overview
For delivering the best possible optics on a touch CRT, there is nothing better than the unique Elo IntelliTouch Zero-Bezel touch-on-tube technology. No overlay means 100% of the brightness, picture quality, and color purity are preserved, with up to 80% less reflection than the competition. The touch is super sensitive, drift free and extremely precise as you are touching even closer to the image. If you want a touch CRT, you need to look no further.
Features
- Unique IntelliTouch Zero-Bezel touch-on-tube technology preserves 100% of the original picture quality
- Digital on-screen display (OSD) with lockout function for public use
- Power Save function
- Rigid (removable) base
- Innovative touchscreen sealing
- Worldwide agency approvals
Presupuesto
-
Técnico
Número(s) de Parte(s)
IntelliTouch ZB (Antireflective, Worldwide) - D95678-001
Color del empaque
Gris oscuro
Tecnología y capacidad táctil
SAW Sin bisel (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
Tamaño de la diagonal
17'' diagonal, matriz activa TFT LCD (LED)
Grosor del monitor
16.8" / 426 mm
Relación de aspecto
4:3
Área activa (mm)
Horizontal: 11.8" / 300 mm
Vertical: 8.9" / 225 mmResolución
1024 x 768 at 85 Hz
Otras resoluciones disponibles
1280 x 1024 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 70, 75, or 85 Hz
800 x 600 at 60, 72, 75, or 85 Hz
640 x 480 at 60, 72, 75, or 85 HzCantidad de colores
16.7 millones
Dot Pitch
0.27 mm
Radio de contraste
300:1
Interface táctile
Dual serial/USB
Exhibidor/Monitor/Display en pantalla
Digital OSD with lockout capability
Video Bandwidth
67 MHz
Formato de entrada de video
Analog (no proprietary video card needed)
Entrada del conector para video señal
Mini D-Sub 15-Pin (female)
Consumo de energía (típico)
75 W max.
Fuente de alimentación
90-264 VAC, 50-60 Hz
Frecuencia de entrada
Horizontal: 30-70 kHz
Vertical: 50-160 HzDimensiones del monitor (sin soporte)
15.9" x 14.2" x 16.8" / 404 mm x 360 mm x 426 mm
Peso sin empaque
32 lbs / 14.5 kg
Peso con empaque
37 lbs / 17.0 kg
Temperatura de operación
0°C to 40°C
Temperatura de almacenamiento
-40°C to 60°C
Humedad
Operating: 10% to 90%
Storage: 10% to 90%
noncondensingMTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
50.000 horas demostradas
Opciones de montaje
Removable base
Otras características
VESA DDC 1/2 B Plug and Play
Garantía
2 años
Aprobaciones y declaraciones reglamentarias
UL, cUL, FCC, CE, CISPR22 Class B, TÜV-GS, MPR II (ITE per IEC/EN 60950)
Cables de energía
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying - P/N: 276875-000.
