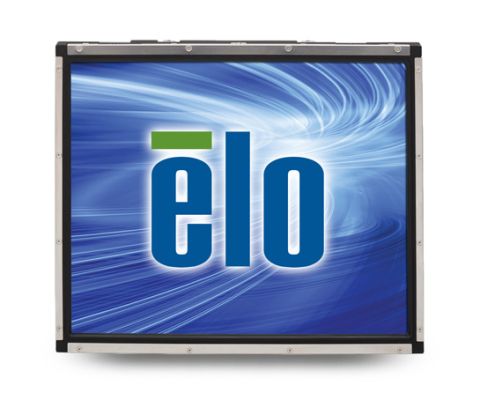

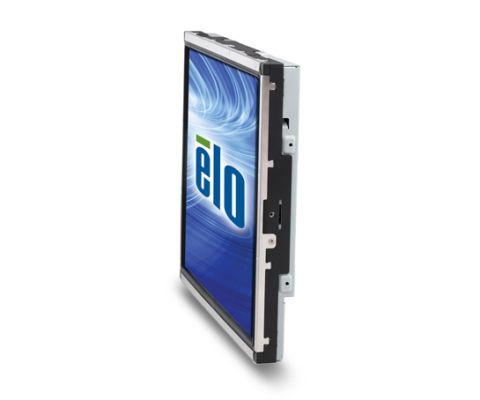

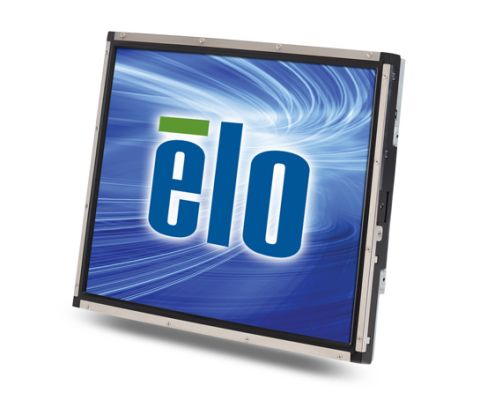

1739L 17" Open Frame Touchscreen (Discontinued September 2015)
Overview
Elo Open Frames Touchscreens have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The 1739L features a wide viewing angle panel along with a unique, injection-molded mini-bezel and virtually invisible water-resistant seal.

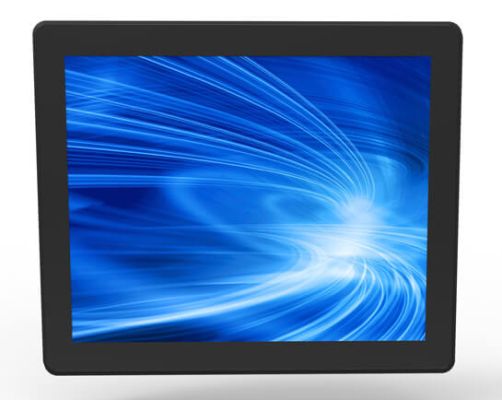

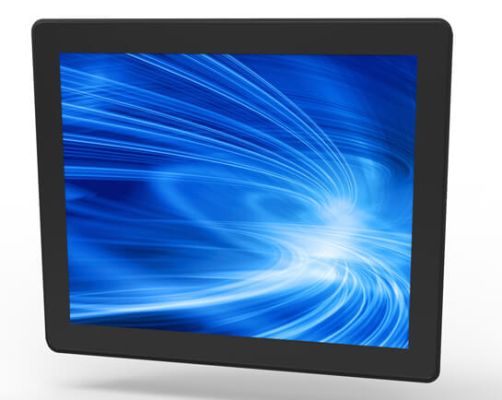

The 1739L is available with a choice of touch technology, with single touch and multi touch options and in standard bezel and seamless, zero-bezel touchscreen design.
Other Features
- High quality energy-saving LED panel
- Long lasting product cycle-enclosure controlled by Elo specifications
- Future generation panels phased-in without external changes
- Integrated precision mini-bezel with water-resistant 0.5 mm seal

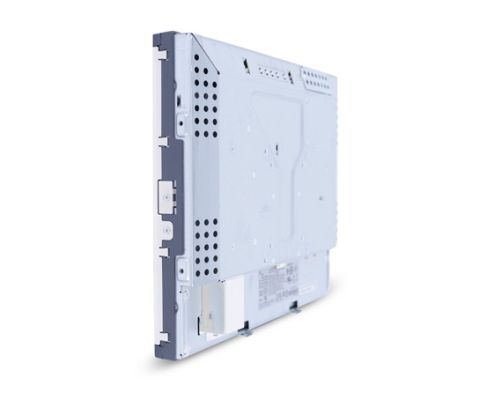

- Mounting options including rear-mount (two standard rear-mount brackets included) and VESA mount; optional front mount (see Accessories tab for details) and rack mount (see Accessories tab for details)
- Multilingual on-screen display (OSD)
- Worldwide agency approvals
- 3-D electronic design files available
Presupuesto
-
Técnico
Número(s) de Parte(s)
CarrollTouch (Antiglare, Worldwide) - E964551
Color del empaque
Negro
Tecnología y capacidad táctil
CarrollTouch Infrared Technology
Interface táctile
Dual serial/USB
Tamaño de la diagonal
17'' diagonal, matriz activa TFT LCD (LED)
Pantalla en pantalla (OSD)
Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
Controls (back): menu, left, right, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controlsRelación de aspecto
5:4
Área activa
13.3" x 10.6" / 338 mm x 270 mm
Resolución
1280 x 1024
Otras resoluciones disponibles
1280 x 1024 at 60, 70 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 HzÁngulo de visión
Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
Cantidad de colores
16.7 millones
Brillo (tipico)
LCD panel: 250 nits
CarrollTouch: 225 nitsTiempo total de respuesta (tipico)
5 msec
Radio de contraste
1000:1
Formato de entrada de video
Analog VGA and digital DVI
Entrada del conector para video señal
Female DE-15 connector, Female DVI-D, Dual-Link connector
Fuente de alimentación
External DC - Optional power brick (sold separately)
Conector de entrada de energía (Monitor)
Type: DC Barrel Jack
Barrel inner diameter: 6.4mm (+/- 0.3mm)
Pin outer diameter: 2.0mm (+0.0 -0.1mm)
Barrel depth: 8.8mm (+/- 0.3mm)Conector de energía (Power brick)
Type: DC Barrel Plug
Barrel outer diameter: 5.5mm (+/- 0.1mm)
Pin inner diameter: 2.1mm (+/-0.1mm)
Barrel length: 9.5mm (+/- 0.5mm)Voltaje de entrada
DC: +12VDC ±5%
Frecuencia de entrada
Horizontal: 31.5-80.0 kHz
Vertical: 56.3-75 HzConsumo de energía (típico)
Monitor only: 20 W
Monitor and power brick: 22 WDimensiones
Bezel: 14.5" x 12.0" x 1.9" / 368 mm x 306 mm x 49 mm
Zero-bezel: 15.6" x 13" x 1.8" / 397mm x 332mm x 46.4mmDimensiones de la caja de envio
Bezel: 18.11" x 16.10" x 6.89" / 460 mm x 410 mm x 175 mm
Zero-bezel: 18.1” x 15.7” x 6.1” / 460 mm x 400 mm x 155 mmPeso sin empaque
8.8 lbs / 4.0 kg
Peso con empaque
11.5 lbs / 5.2 kg
Temperatura de operación
0°C to 40°C / 32°F to 104°F
Temperatura de almacenamiento
-20°C to 60°C / -4°F to 140°F
Humedad
Operating: 20%-80%
Storage: 10%-90%Capacidad de sellado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
50.000 horas demostradas
Garantía
3 años
Aprobaciones y declaraciones reglamentarias
North America/Worldwide: UL/cUL (Recognized), TÜV T-Mark, Argentina S-Mark, MPR II, CE, FCC, VCCI, IC, C-Tick (Class B), BSMI Mark, MIC, CCC, China RoHS
Opciones de montaje
75 mm or 100 mm VESA mount
Rear mount or with included standard mounting brackets
Front mount with optional bezel (see Accessories tab for details)
Rack mount with optional bracket (see Accessories tab for details)Opciones /Periféricos / Ascensos
Banco de alimentación y cable para América del Norte - Elo N/P: E005277
Banco de alimentación y cable para Europa y Corea - Elo N/P: E571601
Banco de alimentación y cable para Reino Unido - Elo N/P: E180092
Banco de alimentación y cable para China - Elo N/P: E558862
Banco de alimentación y cable para Taiwán - Elo N/P: E818655
Banco de alimentación y cable para Japón - Elo N/P: E182546
Banco de alimentación y cable para Argentina - Elo N/P: E887099
Lápiz IntelliTouch - Elo N/P: D82064-000
Soporte en L de 17 y 19 pulgadas Elo - Elo N/P: E147211
Bisel de montaje frontal de 17 pulgadas Elo - Elo N/P: E860319
Soporte de montaje en bastidor de 17 pulgadas Elo - Elo N/P: E939253
Remoto OSD Elo (con cable de 1.8 m) - Elo N/P: E622897Cables táctiles/de video
Detachable touch and video cables are included
Pluma Stylus IntelliTouch Opcional
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost
