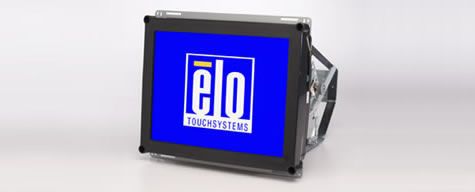

1787C 17" CRT Open Frame Touchmonitor (Discontinued April 2007)
Overview
Elo IntelliTouch® ZB touch-on-tube open-frame CRTs are the right choice for your public access or industrial application because they are easily integrated, reliable, sealed, and deliver the ultimate in picture quality, at an optimal price.
Open-frame CRTs reduce or eliminate the need for redesign by providing a much longer model life than plastic case CRTs. At the same time, they provide the reliability and ruggedness required for operation in an indoor public environment. Featuring the breakthrough Elo IntelliTouch ZB touch-on-tube technology and no overlay to break, your application will have the best picture quality and vandal resistance possible on a touch CRT. A final benefit is the watertight sealed bezel that stays in place when the cabinet front is opened.
Features
- Computer-grade digital design and video quality
- Unique IntelliTouch ZB touch-on-tube technology preserves 100% of the original brightness, picture quality, and color purity, with up to 80% less reflection than some overlays
- Super sensitive, drift free and precise touch with no parallax from an overlay
- Open-frame metal chassis keeps the CRT cooler, extending life
- Fixed outside dimensions-model life is longer than plastic-cased monitors (3D design files available)
- Bezel includes watertight 0.5 mm seal
- Rugged epoxy composite PCB material (CAM-1)
- Schematic and component-level repair manual available, plus entire electronics can be quickly replaced
- Built-in power, deflection and video test with diagnostic pin and LEDs
- Multilingual on-screen display (OSD) with long cable length for easy relocation
- Detachable video cable for easy cable harnessing
- Locking power connector
- Worldwide agency approvals
Presupuesto
-
Técnico
Número(s) de Parte(s)
IntelliTouch ZB (Antireflective, Worldwide) - 375460-000
IntelliTouch ZB (Antireflective, Worldwide) - A24302-000Color del empaque
Negro
Tecnología y capacidad táctil
SAW Sin bisel (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
Interface táctile
Serial: 375460-000 /nUSB: A24302-000
Tamaño de la diagonal
17'' diagonal, matriz activa TFT LCD (LED)
Pantalla en pantalla (OSD)
Multilingual OSD
Relación de aspecto
4:3
Área activa
Horizontal: 11.8" / 300 mm
Vertical: 8.9" / 225 mmResolución
1024 x 768 at 85 Hz
Otras resoluciones disponibles
1024 x 768 at 85 Hz (VESA)
800 x 600 at 85 Hz (VESA)
640 x 480 at 60 Hz (VGA)Cantidad de colores
16.7 millones
Radio de contraste
300:1
Formato de entrada de video
Analog
Entrada del conector para video señal
Mini D-Sub 15-Pin (female)
Fuente de alimentación
100-240 VAC, 50-60 Hz
Frecuencia de entrada
Horizontal: 30-70 kHz
Vertical: 50-160 HzConsumo de energía (típico)
65 W typical, 75 W max.
Dimensiones
15.6" x 13.5" x 15.9" / 397.2 mm x 342.6 mm x 405 mm
Peso sin empaque
27.8 lb / 12.6 kg
Peso con empaque
34.4 lb / 15.6 kg
Temperatura de operación
5°C to 55°C
Temperatura de almacenamiento
-20°C to 60°C
Humedad
Operating: 10% to 80%
noncondensingMTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
50.000 horas demostradas
Garantía
Contactar con Elo
Aprobaciones y declaraciones reglamentarias
FCC/ICES-03 Class B, UL/cUL recognized component, TÜV Bauart, CE, VCCI, C-Tick, MPR II, DHHS, Demko
Cables de energía
A special locking power cable is required. Power cables which may be suitable are available separately: North American version (drawing MS500325 Rev B); European version (drawing MS500324 Rev B).
Brackets & Bezel Kits
Open-Frame Adaptor Bracket: A44380-000. For base-mounting solutions. Available at additional cost.
Replacement Board Set: 408678-000. Available at additional cost.
Square Kiosk Bezel: A71324-000. Shipped separately. Available at additional cost.Cables táctiles/de video
Detachable touch and video cables are included
