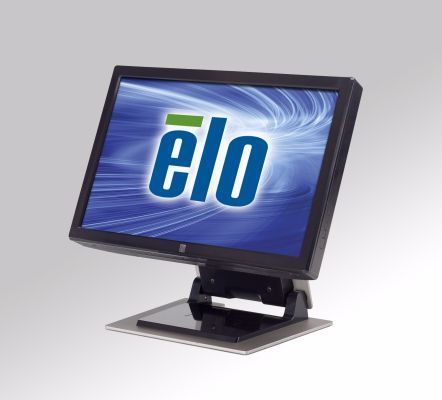

1900L 19-inch Desktop Touchmonitor (Discontinued November 2015)
Overview
Consisting of a glass scratch-resistant touchscreen, the 1900L desktop touchmonitor delivers benefits that combine the ultimate in optical qualities with a stylish, built-for-touch design, developed for use in public environments.
The 1900L is available with IntelliTouch® surface acoustic wave touch technology, a pure-glass touchscreen that provides superior optical performance.
Wide-aspect displays like the 1900L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. The wide-screen format allows extra content on the screen and is quickly becoming preferred in corporate environments for publishing and dual window applications, and is popular in public venue environments due to a high-definition cinematic-like experience.
Typical applications include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.
Presupuesto
-
Técnico
Número(s) de Parte(s)
E619279
E500662Color del empaque
Negro
Tecnología y capacidad táctil
Resistiva de 5 hilos (AccuTouch®) - Táctil simple
Tamaño de la diagonal
19'' diagonal, matriz activa TFT LCD (LED)
Grosor del monitor
11.8" (300 mm)
Relación de aspecto
4:3
Área activa
Horizontal: 16.1" (408 mm)
Vertical: 10.1" (255 mm)Resolución
1440 x 900 at 60 Hz
Otras resoluciones disponibles
1680 x 1050 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 768 at 65 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 72 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60 or 72 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 or 72 HzÁngulo de visión
Horizontal: ±80° o 160° total / Vertical: ±80° o 160° total
Cantidad de colores
16.7 millones
Brillo (tipico)
LCD panel: 250 nits
IntelliTouch: 225 nitsTiempo total de respuesta (tipico)
5 msec
Radio de contraste
1000:1
Pantalla en pantalla (OSD)
Controls (side): menu, up, down, select, power
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, fill screen, color temperature, input video select, OSD H/V position, OSD timeout, recall defaults, sharpness, volume, mute, input video select
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controlsConector de entrada de audio
3.5mm TRS jack
Conector de salida de los auriculares
3.5mm TRS jack
Altavoces
Two 2W internal speakers
Formato de entrada de video
Analog VGA, DVI video (Asia/Pacific models without DVI)
Entrada del conector para video señal
Mini D-Sub 15-Pin VGA type, DVI-D connector
Consumo de energía (típico)
70W
Fuente de alimentación
Internal AC, Optional external DC (power brick)
Voltaje de entrada
AC: 100-240 VAC, 50/60 Hz
DC: 12 VDC ±5%Adaptador de conector de salida
AC: IEC 60320 C6
DC: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length)Dimensiones del monitor (con soporte)
Width: 17.7" (449 mm)
Depth: 11.8" (300 mm)
Height: 15.0" (380 mm)Dimensiones de la caja de envio
Width:19.75" (500 mm)
Depth: 23.63" (600 mm)
Height: 10.06" (255 mm)Peso (con soporte)
19.9 lb (9.0 kg)
Peso (sin soporte)
13.2 lb (6.0 kg)
Peso de envío (con soporte)
26.8 lb (12.2 kg)
Temperatura de operación
0°C to 40°C (32°F to 104°F)
Temperatura de almacenamiento
-20°C to 60°C (-4°F to 140°F)
Humedad
Operating: 20%-80%
Storage: 10%-90%Capacidad de sellado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
50.000 horas demostradas
Opciones de Soporte
Tilt, remove, adjust height, pivot (landscape/portrait mode)
Opciones de montaje
100 mm VESA mount
Threaded-through mounting holes, under standOtras características
Security lock receptacle
Garantía
2 años
