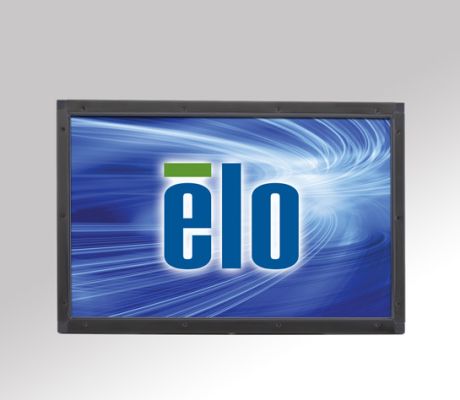

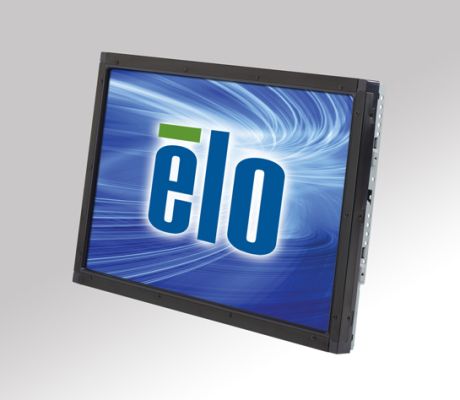

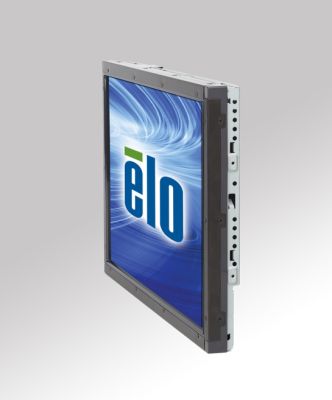

1938L 19" Open Frame Touchscreen (Discontinued February 2016)
Overview
The 1938L open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators, and complements the expanded family of Elo touch solutions for gaming and amusement, retail self-service and kiosk applications. This compact touchmonitor is "designed for touch," with proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.
Like all Elo open-frame touchmonitors, the specifications and tooling are controlled to ensure a long product life, which is important in maintaining continuity for all phases of project rollouts and servicing. The 1938L features an injection-molded bezel with a virtually invisible water-resistant seal, thus making it a good choice to withstand the rigors of public use. Narrow borders, black anodized bezel hardware, multiple mounting options, and dual serial/USB touch interface add to the touchmonitor's flexibility. Worldwide agency approvals cover the entire monitor that is developed, built and supported by Elo TouchSystems, a true single-source supplier.
The 1938L is available with a choice of IntelliTouch surface acoustic wave and SecureTouch surface acoustic wave touch technologies. (SecureTouch monitors use a 3 mm chemically strengthened glass touch sensor.) The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.
Features
- High quality panel with 160°x160° viewing angle
- 1000:1 contrast ratio
- Long lasting product cycle-enclosure controlled by Elo specifications
- Future generation panels phased-in without external changes
- Integrated precision minibezel with water-resistant 0.5 mm seal
- Mounting options including rear-mount (with two included mounting brackets) and VESA mount
- IntelliTouch or SecureTouch surface wave touch technology with dual serial/USB touch interface. (SecureTouch monitors use a 3 mm chemically strengthened glass touch sensor.)
- Integrated multilingual on-screen display (OSD), connector for optional remote on-screen display (OSD)
- Worldwide agency approvals
- Three year warranty
- 3-D electronic design files available
Presupuesto
-
Técnico
Número(s) de Parte(s)
IntelliTouch (Antiglare, Americas, EMEA) - E965017
Color del empaque
Negro
Tecnología y capacidad táctil
SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
Interface táctile
Dual serial/USB
Tamaño de la diagonal
19'' diagonal, matriz activa TFT LCD (LED)
Pantalla en pantalla (OSD)
Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
Controls (back): menu, left, right, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, French, Italian, German, Spanish, Traditional Chinese, Simplified Chinese, Korean, Japanese
Lockouts: power, user controlsRelación de aspecto
16:10
Área activa
16.1" x 10.0" / 408 mm x 255 mm
Resolución
1440 x 900 at 60 Hz
Otras resoluciones disponibles
1680 x 1050 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 768 at 60, 65 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 72 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60 or 72 Hz
720 x 400 at 70 Hz
640 x 350 at 70Hz
640 x 480 at 60, 66 or 72 HzÁngulo de visión
Horizontal: ±80° o 160° total / Vertical: ±80° o 160° total
Cantidad de colores
16.7 millones
Brillo (tipico)
LCD panel: 250 nits
IntelliTouch: 225 nitsTiempo total de respuesta (tipico)
3.7 msec
Radio de contraste
1000:1
Formato de entrada de video
Analog VGA, DVI (Asia/Pacific models without DVI)

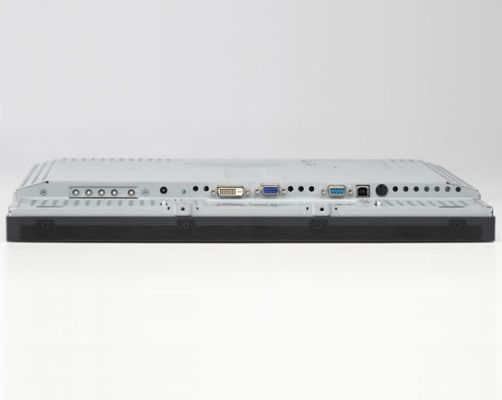

Entrada del conector para video señal
Mini D-Sub 15-Pin VGA type, DVI-D
Fuente de alimentación
External DC - Optional power brick (sold separately)
Conector de entrada de energía (Monitor)
Type: DC Barrel Jack
Barrel inner diameter: 6.4mm (+/- 0.3mm)
Pin outer diameter: 2.0mm (+0.0 -0.1mm)
Barrel depth: 8.8mm (+/- 0.3mm)Conector de energía (Power brick)
Type: DC Barrel Plug
Barrel outer diameter: 5.5mm (+/- 0.1mm)
Pin inner diameter: 2.1mm (+/-0.1mm)
Barrel length: 9.5mm (+/- 0.5mm)Voltaje de entrada
DC: +12VDC ±5%
Frecuencia de entrada
Horizontal: 83 kHz
Vertical: 76 HzConsumo de energía (típico)
Monitor only: 41.1W
Monitor and power brick: 41.6WDimensiones
17.5" x 11.7" x 1.9" / 444 mm x 297 mm x 47 mm
Dimensiones de la caja de envio
21.3" x 6.9" x 15.4" / 540 mm x 175 mm x 390 mm
Peso sin empaque
10.5 lbs / 4.8 kg
Peso con empaque
15.2 lbs / 6.9 kg
Temperatura de operación
0°C to 40°C / 32°F to 104°F
Temperatura de almacenamiento
-20°C to 60°C / -4°F to 140°F
Humedad
Operating: 20%-80%
Storage: 10%-90%Capacidad de sellado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
50.000 horas demostradas
Garantía
3 años
Aprobaciones y declaraciones reglamentarias
Worldwide: UL, cUL (Recognized) , TÜV-T Mark, Argentina S, CE, FCC, VCCI, IC, GOST-R Mark, C-Tick (Class B), BSMI, KC, CCC
Opciones de montaje

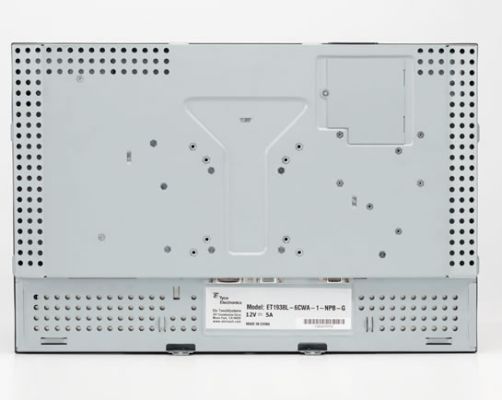

75 mm or 100 mm VESA mount
Rear mount or with included standard mounting bracketsOpciones /Periféricos / Ascensos
Banco de alimentación y cable para América del Norte - Elo N/P: E005277
Banco de alimentación y cable para Europa y Corea - Elo N/P: E571601
Banco de alimentación y cable para Reino Unido - Elo N/P: E180092
Banco de alimentación y cable para China - Elo N/P: E558862
Banco de alimentación y cable para Taiwán - Elo N/P: E818655
Banco de alimentación y cable para Japón - Elo N/P: E182546
Banco de alimentación y cable para Argentina - Elo N/P: E887099
Remoto OSD Elo (con cable de 1.8 m) - Elo N/P: E622897Brackets & Bezel Kits
Part number E484257, available at additional cost. Minimum order quantity of 50 sets
Cables táctiles/de video
Detachable touch and video cables are included
Pluma Stylus IntelliTouch Opcional
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost
