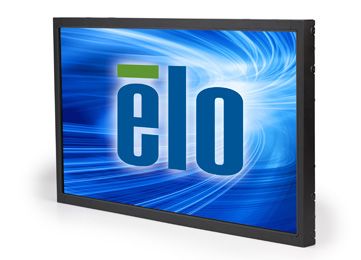

3243L 32" Open Frame Touchscreen (Discontinued April 2016)

Presupuesto

• Técnico

  ---

  Número(s) de Parte(s)

  IntelliTouch DT (Clear, Worldwide) - E589724
  IntelliTouch DT (Clear, Asia/Pacific) - E444804

  Color del empaque

  Negro

  Tecnología y capacidad táctil

  SAW (IntelliTouch® Surface Acoustic Wave) - Táctil dual

  Interface táctile

  USB

  Tamaño de la diagonal

  32'' diagonal, matriz activa TFT LCD (LED)

  Pantalla en pantalla (OSD)

  Accessible through switches on the OSD Control Remote accessory. Controls (side): Menu, Up, Down, Select
  Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source
  Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
  Lockouts: OSD, Power
  RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.
  See user manual for full details.

  Relación de aspecto

  16:9

  Área activa

  27.57" x 15.54" / 700.4 mm x 394.85 mm

  Resolución

  1920 x 1080

  Otras resoluciones disponibles

  640 x 480 at 60Hz
  800 x 500 at 60Hz
  800 x 600 at 56/60Hz
  1024x768 at 60Hz
  1280 x 720 at 60Hz
  1280x960 at 60 Hz
  1280x1024 at 60Hz
  1360x768 at 60 Hz
  1366x768 at 60 Hz
  1440x900 at 60 Hz
  1600x1200 at 60 Hz
  1680x1050 at 60 Hz
  1920x1080 at 60 Hz

  Ángulo de visión

  Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

  Cantidad de colores

  16.7 millones

  Brillo (tipico)

  LCD Panel: 500 nits
  IntelliTouch DT: 450 nits

  Tiempo total de respuesta (tipico)

  8 msec

  Radio de contraste

  3000:1

  Formato de entrada de video

  Analog VGA, HDCP-capable HDMI 1.3 (WW model only), DVI (Asian model only)

  Entrada del conector para video señal

  Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only),
  Female DVI-D Dual Link Connector (Asian model only)

  Fuente de alimentación

  Internal AC

  Voltaje de entrada

  AC: 100-240 VAC, 50/60 Hz

  Conector de entrada de audio

  AC: IEC 60320 C14

  Frecuencia de entrada

  Horizontal: 60 – 73KHz
  Vertical: 47-63 Hz

  Consumo de energía (típico)

  Power Consumption (Typical at 120V at 60Hz):
  ON (monitor + AC/DC adapter): 47.4W
  SLEEP (monitor + AC/DC adapter): 1.1W
  OFF (monitor + AC/DC adapter): 0.1W


  Power Consumption (Typical at 230V at 50Hz):
  ON (monitor + AC/DC adapter): 47.1W
  SLEEP (monitor + AC/DC adapter): 1.1W
  OFF (monitor + AC/DC adapter): 0.1W

  Dimensiones

  29.0" x 17.4" x 2.25" / 736.4 mm x 443 mm x 57.2 mm

  Dimensiones de la caja de envio

  39.05" x 26.45" x 11.65" / 992 mm x 672 mm x 296 mm

  Peso sin empaque

  26.7 lb / 12.1 kg

  Peso con empaque

  24.6 lb / 11.2 kg

  Temperatura de operación

  0°C to 40°C / 32°F to 104°F

  Temperatura de almacenamiento

  -20°C to 60°C / -4°F to 140°F

  Humedad

  Operating: 20-80%
  Storage: 10-90%

  MTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)

  50.000 horas demostradas

  Garantía

  3 años

  Aprobaciones y declaraciones reglamentarias

  Argentina S-Mark; Australia C-Tick; Canada CUL, IC; China CCC;
  Europe CE; Japan VCCI; Korea KC, KCC, e-Standby;
  Mexico CoC; Russia EAC; Taiwan BSMI;
  United States UL, FCC; International CB;
  RoHS, China RoHS, WEEE

  United States UL 60950 ball-drop compliant

  Opciones de montaje

  400mm x 200mm VESA mount
  Side mounting brackets included

  Opciones /Periféricos / Ascensos

  OSD remoto (RJ45) - Elo N/P: E483757
  Kit de cable de repuesto - Elo N/P: E378229
  Lápiz IntelliTouch - Elo N/P: D82064-000
  Kit de repuesto del soporte para modelo IT 3243L - Elo N/P: E727550
  Kit de montaje al ras para PCAP 3243 - Elo N/P: E312503

  Cables táctiles/de video

  All appropriate cables are included and are detachable

  Pluma Stylus IntelliTouch Opcional

  Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Part number D82064-000, available at additional cost
