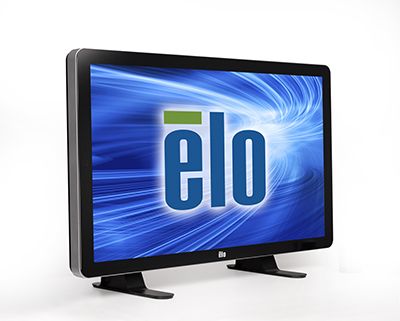

4200L 42" Interactive Digital Signage (Discontinued May 2013)
Overview
The 4200L IDS display is more than a media player and more than a consumer display. IDS touch displays enable increased customer engagement and metrics for out-of-home environments by adding an exciting new dimension to traditional broadcast digital signage – the power of touch.
The 4200L offers a unique interactive display designed to enhance the touch experience. The 42-inch interactive, large-format display features a choice of industry-leading touch technologies that optimizes the touch experience for a particular usage. Housed in a highly durable steel chassis for a long-life of reliable performance, the 4200L with any of the available touchscreen technologies is an efficient display canvas for almost any commercial, public access application:
For a seamless, zero-bezel design, the innovative Acoustic Pulse Recognition (APR) touch technology delivers an elegant appearance and a responsive touch experience. Zero-bezel APR recognizes touch on virtually the entire display surface, offering a full-screen interface for navigation regardless of how the display is touched—finger, prosthetic, stylus, card or pen.
For a sensitive, accurate touch response IntelliTouch® surface wave product technology utilizes pure-glass construction to deliver excellent imagery with high light transmissions, not affected by changes in ambient light, and supports finger, gloved hand and soft stylus activation.
For a light, no pressure multi-touch (up to 4 touch points) experience on a pure-glass surface, optical touchscreen technology provides a crystal clear image and recognizes touch from any input device, such as a finger, gloved finger, pen, or stylus.The large-format, professional displays are not only attractive, but rugged enough to withstand the constant interactivity inherent in public access venues, such as retail, self-service, hospitality, transportation, education, and healthcare. Built to last in public access environments, unlike typical consumer displays, Elo touch solutions offer a longer life and a richer digital signage experience.
The IDS displays are also available in 32-and 46-inch, to fit a wide variety of configurations and uses and come in an attractively designed package well-suited for many business segments and applications. Optional Computer Module are also available (reference Accessories tab) in three options, ECM1, ECM2 and ECM3, to support and deliver engaging and interactive personalized content.
Other features.
- Available with Zero-bezel Acoustic Pulse Recognition (APR) for an elegant appearance and sensitive touch response with virtually any touch stylus - finger, stylus, card or pen; IntelliTouch surface acoustic wave reliable single touch by finger or soft stylus and optical touchscreen technology for a sensitive multi-touch response with any input device.
- Pure-glass display surface delivers crystal clear images
- Housed in a highly durable steel chassis for a long-life of reliable performance
- VESA mounting with optional stand
- Aspect ratio 16:9
- True High Definition (HD) 1080p (1920 x 1080)
- Seamless, field installable, computer module, docking integration
- Heat strengthened glass per ASTM C1048; UL60950 ball drop test compliant
- Analog VGA and HDCP-capable HDMI 1.3, video
- Two 10W speakers
Presupuesto
-
Técnico
Número(s) de Parte(s)
IntelliTouch (USB, Clear, Americas, Asia-Pacific, EMEA) - E841203
Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia-Pacific, EMEA) - E967142
Optical (USB, Clear, Americas, Asia-Pacific, EMEA) - E505459Color del empaque
Negro
Tecnología y capacidad táctil
SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
Reconocimiento Acústico de Pulso - Solo Toque
Optical - Up to 6 TouchTamaño de la diagonal
42'' diagonal, matriz activa TFT LCD (LED)
Área activa
36.6" x 20.6" / 930mm x 523mm
Relación de aspecto
16:9
Resolución
1920 x 1080
Otras resoluciones disponibles
640x480 60Hz
720x480 60Hz
720x576 50Hz
800x600 56, 60Hz
1024x768 60Hz
1280x720 50, 60Hz
1280x960 60Hz
1280x1024 60Hz
1360x768 60Hz
1366x768 60Hz
1440x900 60Hz
1680x1050 60Hz
1920x1080 50, 60HzÁngulo de visión
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Cantidad de colores
16.7 millones
Brillo (tipico)
LCD panel: 450 nits
Acoustic Pulse Recognition: 405 nits
IntelliTouch: 405 nits
Optical: 405 nitsTiempo total de respuesta (tipico)
6.5 msec
Radio de contraste
3500:1
Interface táctile
USB: E841203, E967142, E505459
Pantalla en pantalla (OSD)
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Accessible through switches on the rear, or through the standard Elo OSD control box.Puertos de E/S
COM1 and COM2 - Software specific; for future use
Formato de entrada de video
Analog VGA and HDCP-capable HDMI 1.3 video
Entrada del conector para video señal
Female DE-15 for Analog VGA
HDMI Type A receptacle for HDMIConector de entrada de audio
3.5 mm TRS jack
Rango de señal de la entrada de audio
1 Vrms max. stereo signal (standard PC line out)
Conector de salida de los auriculares
3.5 mm TRS jack
Señal de salida de auriculares
Delivers 90 mW of power into a 32 ohm stereo load
Altavoces
Two 10W RMS speakers
Fuente de alimentación
Type: Internal AC
Conector de entrada de audio
IEC 60320 C14
Voltaje de entrada
100-240 VAC, 50/60Hz
Frecuencia de entrada
Horizontal: 32-80 kHz / Vertical: 47-61 Hz
Consumo de energía (típico)
Monitor only (at 100V/60Hz):
ON, max audio: 230W; SLEEP: 12.5W; OFF: 3.2W
Monitor with ECM1 Computer Module(at 100V/60Hz):
S0 - ON, max audio: 323W
S3 - STANDBY: 16W
S5 - OFF: 13W
Monitor with ECM2 Computer Module(at 100V/60Hz): S0 - ON, max audio: 353W
S3 - STANDBY: 15W
S5 - OFF: 13WDimensiones
40.2" x 24.1" x 5.2" / 1020 mm x 613 mm x 132 mm
Dimensiones de la caja de envio
47.0" x 31.0" x 12.0" / 1194 mm x 788 mm x 305 mm
Peso sin empaque
Without Computer Module: 74.7 lbs / 33.9 kg
With Computer Module: 80.5 lbs / 36.5 kgPeso con empaque
Without Computer Module: 99.7 lbs / 45.2 kg
Temperatura de operación
0°C to 40°C / 32°F to 104°F
Temperatura de almacenamiento
-20°C to 50°C / -4°F to 122°F
Humedad
Operating: 20%-80%
Storage: 10%-90%
noncondensingOpciones de montaje
VESA MIS-F, 600 x 400, Y, 6, 90
MTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
50.000 horas demostradas
Garantía
3 años
Aprobaciones y declaraciones reglamentarias
CB, UL, FCC, BSMI, cUL, CE, VCCI, IC, C-TICK, S-Mark, CCC, Russia & CIS GOST, NOM, KC
Optional Accessories/Peripherals
Acoustic Pulse Recognition (APR) Stylus pen - Elo P/N: E963860
IntelliTouch SAW Stylus pen - Elo P/N: D82064-000
2.2 GHz ECM1 with Windows XP - Elo P/N: E370690
3.0 GHz ECM2 with Windows XP - Elo P/N: E268268
2.2 GHz ECM1 without OS - Elo P/N: E587119
3.0 GHz ECM2 without OS - Elo P/N: E057911
2.2 GHz ECM1 with Windows 7 - Elo P/N: E077771
3.0 GHz ECM2 with Windows 7 - Elo P/N: E588755
2.5 GHz ECM3 with Windows 7 - Elo P/N: E518070
2.5 GHz ECM3 with no OS - Elo P/N: E694079
Replacement Cable Kit - EMEA: Elo P/N - E414311
Replacement Cable Kit - Japan: Elo P/N - E545338
Replacement Cable Kit - Asia-Pacific: Elo P/N - E914104
Replacement Cable Kit - North America: Elo P/N - E998924
OSD Control Box - Elo P/N: E622897
Webcam - Elo P/N: E828885 and Elo P/N: E574975Stand opcional
Elo P/N: E448725
