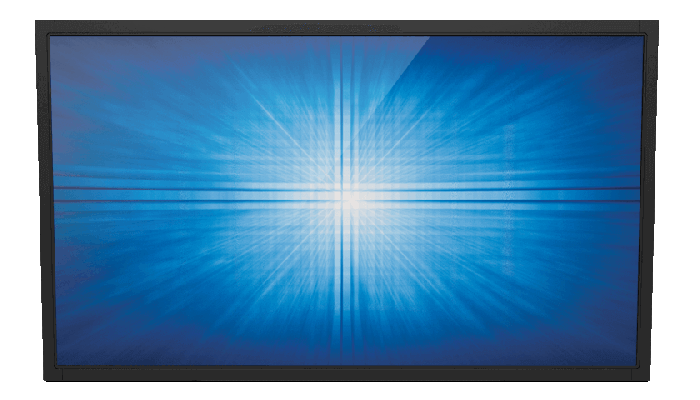

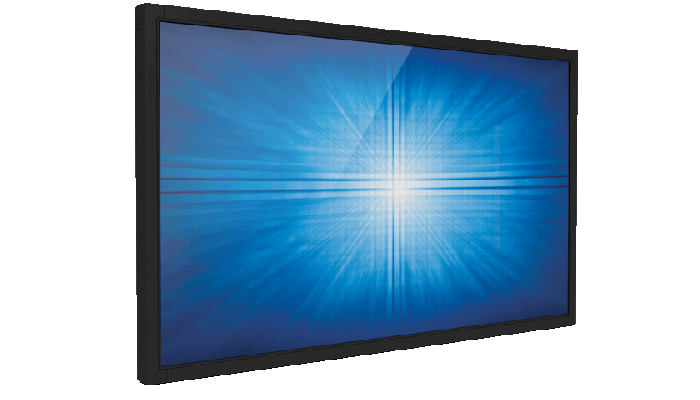

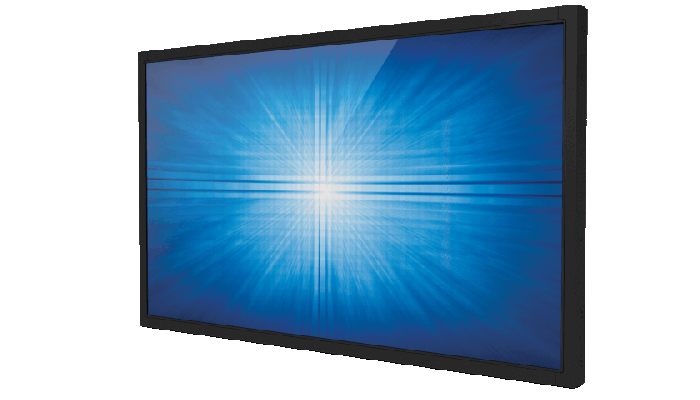

4243L Open Frame Touchscreen (Discontinued March 2019)
Overview
The Elo 4243L 42-inch full HD open-frame touchscreen delivers a professional-grade large format display at less than 2.6 inches (66 mm) in total thickness and less than 1 inch in border width. Designed for touch from the start with proven Elo expertise and reliability built in, the 4243L offers a sleek state-of-the-art slim design using LED backlighting, reducing power consumption and heat to enable thinner and smaller kiosk designs for various applications in retail, hotels, gaming, transportation and other commercial uses. The touchscreen glass is tested with robust UL60950 ball-drop requirements, supporting applications in demanding public access environments. The 4243L features a unique, injection-molded bezel with a virtually invisible water-resistant seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a USB touch interface add to the versatility of the 4243L.
Easily integrated.Featuring a compact form factor and optional rack- and front-mount bezels, the 4243L is easy to integrate. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With design and tooling being controlled by Elo, long-lasting product availability, as well as backwards compatibility, can be expected helping to minimize enclosure costs. |
 |
 |
Touch ready.The 4243L is available with a choice of dual- or multi-touch technologies as well as a non-touch option. IntelliTouch® surface acoustic wave (SAW) dual-touch offers the ultimate in optical quality. All 4243L touchscreens provide pure glass construction to deliver a clear, bright and long-lasting performance. With the touchscreens being scratch-resistant, it is nearly impossible to physically wear them out.
|
Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).
|
 |
Other features.
- 1920 x 1080 full HD provides a bright, high contrast display with a wide viewing angle that easily attracts and holds the user’s attention
- Multiple mounting options are available
- Worldwide agency approvals and a three-year standard warranty extendable to five years
- Integrated power supply
Similar products.
3243L 32" Open Frame Touchscreen4202L 42" Interactive Digital Signage
4343L 42.5" Open Frame Touchscreen
5543L 55" Open Frame Touchscreen
Presupuesto
-
Técnico
Número(s) de Parte(s)
IntelliTouch Dual Touch (Asia) - E000445
Non-Touch (Worldwide) - E000447Color del empaque
Negro
Tecnología y capacidad táctil
SAW (IntelliTouch® Surface Acoustic Wave) - Táctil dual
Sin TáctilTamaño de la diagonal
42'' diagonal, matriz activa TFT LCD (LED)
Pantalla en pantalla (OSD)
Accessible through switches on the OSD Control Remote accessory.
Controls (side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.
See user manual for full details.Relación de aspecto
16:9
Área activa
36.6" x 20.6" / 930mm x 523mm
Resolución
1920 x 1080
Otras resoluciones disponibles
640 x 480 at 60Hz
800 x 500 at 60Hz
800 x 600 at 56/60Hz
1024 x 768 at 60Hz
1280 x 720 at 60Hz
1280 x 960 at 60 Hz
1280 x 1024 at 60Hz
1360 x 768 at 60 Hz
1366 x 768 at 60 Hz
1440 x 900 at 60 Hz
1600 x 1200 at 60 Hz
1680 x 1050 at 60 Hz
1920 x 1080 at 60 HzÁngulo de visión
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Cantidad de colores
1073.7 millones
Brillo (tipico)
LCD panel: 500 nits
IntelliTouch Dual Touch: 450 nits
Non-Touch: 450 nitsTiempo total de respuesta (tipico)
8 msec
Radio de contraste
4000:1
Formato de entrada de video
Analog VGA, HDCP-capable HDMI 1.3 (WW model only), DVI (Asian model only)
Entrada del conector para video señal
Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only)
Female DVI-D Dual Link Connector (Asian model only)Entrada de video frecuencia
Horizontal: 31 - 80 KHz
Vertical: 47 - 63 HzFuente de alimentación
Internal AC
Voltaje de entrada
AC: 100-240 VAC, 50/60 Hz
Conector de entrada de audio
AC: IEC 60320 C14
Consumo de energía (típico)
Monitor Only
(Typical at 110V at 60Hz):
ON: 104 W
SLEEP: 2.0 W
OFF: 0.5 W
(Typical at 230V at 50Hz):
ON: 102.0 W
SLEEP: 2.5 W
OFF: 1 WDimensiones
38.5" x 22.6" x 2.6" / 978mm x 575mm x 65mm
Dimensiones de la caja de envio
45.9" x 33.7" x 11.02" / 1168mm x 856mm x 280mm
Peso sin empaque
44 lbs / 20 kg
Peso con empaque
61 lbs / 27.67 kg
Temperatura de operación
0°C to 40°C / 32°F to 104°F
Temperatura de almacenamiento
-20°C to 50°C / -4°F to 122°F
Humedad
Operating: 20% to 80%
Storage: 10% to 95%Capacidad de sellado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
50.000 horas demostradas
Garantía
3 años
Aprobaciones y declaraciones reglamentarias
Australia RCM
Canada cUL, IC
China CCC
Europe CE
Japan VCCI
Korea KCC e-standby
Mexico NOM, CoC
Taiwan BSMI
United States UL, FCC
International CB
RoHS, China RoHS, WEEE
Russia EACOpciones de montaje
Mounting Options 400, 400, 6mm VESA mount
Side mounting brackets includedOpciones /Periféricos / Ascensos
OSD remoto (RJ45) - Elo N/P: E483757
Elo Backpack® - Elo P/N: E611864
Lápiz IntelliTouch - Elo N/P: D82064-000
Kit de repuesto del soporte para modelo IT 3243L - Elo N/P: E727550
