5500L 55" Interactive Digital Signage (Discontinued June 2015)
Cómo comprar

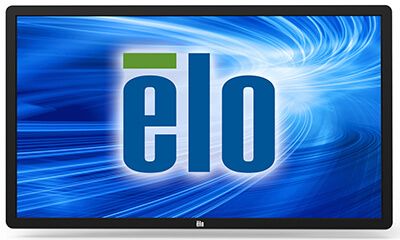

The thin profile Elo 5500L Interactive Digital Signage (IDS) display combines a precision touchscreen with a professional-grade, large format LCD panel. The 5500L offers System Integrator, Value-Added Resellers and Software Developers a high-performance touch solution for interactive digital displays in high traffic environments.

The 55" 5500L is part of a family of large-format touch displays which bring interactivity to digital signage. The 5500L features a choice of two sensitive, accurate touchscreen technologies, each with pure-glass construction for visual clarity: Optical touchscreen provides multi-touch (up to 4 touches) and gesture support (Microsoft® Windows 7 required); IntelliTouch® single-touch surface acoustic wave (SAW) touchscreen stands out for consistent reliability

The display is housed in a highly durable steel chassis for a long life of reliable and durable performance in almost any public access location. Optical multi-touch touchscreen technology recognizes touch with a finger, gloved hand, stylus, card or pen while the IntelliTouch touchscreen recognizes touch by a finger, gloved hand, or virtually any soft stylus. With these touchscreen technologies, the result is an efficient display canvas for almost any commercial application. In addition, the 5500L sports a thinner profile (4.8") and an LED-based LCD panel which reduces power consumption and heat output.

Optional high performance computer modules are well-suited for running interactive media and are available with a choice of three processing models: ECM1 with the Intel Celeron Dual-Core 2.2GHz, ECM2 with the Intel Core 2 Duo 3.0GHz and ECM3 with the Intel Core i5 2.5GHz. The computer modules are field-installable, easily sliding into a dedicated bay behind the touch display and locking into place with two thumbscrews. These modules make the 5500L a reliable platform that is inter-operable with content management servers and support optimal partitioning of locally cached and network stored content.

Other features.
  • Pure-glass display surface delivers crystal clear images
  • VESA mounting with optional stand
  • Aspect ratio 16:9
  • True High Definition (HD) 1080p (1920 x 1080)
  • Seamless, field installable, computer module, docking integration
  • Heat strengthened glass per ASTM C1048; UL60950 ball drop test compliant
  • Analog VGA and HDCP-capable HDMI 1.3, video
  • Two 10W speakers
  • Housed in a highly durable steel chassis for a long-life of reliable performance
