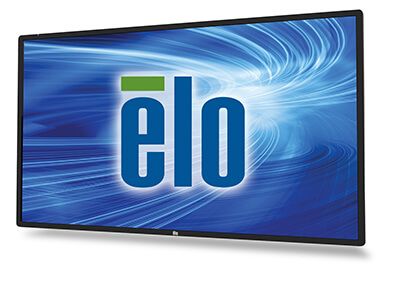

7001L 70" Interactive Digital Signage (Discontinued February 2016)
This product has been replaced by - 6553L.
Overview
The 7001L Interactive Digital Signage display combines an optical multi-touch touchscreen with a professional-grade, large format display in a slim, integrated package. For retail, hospitality, commercial real estate, education and other commercial applications, the large wide-screen format offers a high-quality, interactive canvas for attracting and engaging consumers. The 7001L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain. With a total thickness of 3.5 inches (89mm), the 7001L is compliant with the ADA requirement of less than 4” protrusion for wall-mounted products when used with a compatible wall-mount.
With a 700 nit LED panel, the 7001L is a bright, high quality display suitable for public environments. The optical touchscreen enables up to six simultaneous touches for multi-user interaction. This touch technology offers a fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Microsoft Windows® 7 and Windows 8 operating systems. The touchscreen is 4mm thick, fully tempered glass.
Elo IDS - 01 series displays are compatible with Intel's Open Pluggable Standard (OPS) for Digital Signage with an available adapter kit. Optional, high performance computer modules are available which turn the 7001L into a completely integrated all-in-one computer—without the need for any cables or additional mounting hardware.
Computer modules are available in a choice of two models: ECMG2-i3 based on a 3.3GHz Intel Core i3 processor and HD2500 graphics ECMG2-i5 based on a 3.6GHz Intel Core i5 processor and HD4000 graphics. The high performance, commercial-grade computer modules make the 7001L a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.
Other features.
- Compatible with Intel Open Pluggable Standard (OPS) with available adapter kit (E102270), sold separately.
- Available with optical touchscreen technology for a sensitive multi-touch response with any input device.
- Pure-glass touchscreen delivers crystal clear images
- Housed in a highly durable steel chassis for a long-life of reliable performance
- VESA mounting.
- Aspect ratio 16:9
- High Definition (PHD) 1080p (1920 x 1080 native resolution)
- Seamless, field installable, computer module, docking integration
- Heat strengthened glass per ASTM C1048; UL60950 ball drop test compliant
- Analog VGA and HDCP-capable HDMI 1.3, video.
Presupuesto
-
Técnico
Número(s) de Parte(s)
Optical (USB, Clear, Americas, Asia-Pacific, EMEA) - E027378
Color del empaque
Negro
Tecnología y capacidad táctil
Optical - Up to 6 Touch
Tamaño de la diagonal
69.5'' diagonal, matriz activa TFT LCD (LED)
Área activa
60.6" x 34.1" / 1539 mm x 866 mm
Relación de aspecto
16:9
Resolución
1920 x 1080 60Hz
Otras resoluciones disponibles
640x480 60Hz
720x480 60Hz
720x576 50Hz
800x600 56Hz
1024x768 60Hz
1280x720 50,60Hz
1280x960 60Hz
1280x1024 60Hz
1366x768 60Hz (does not scale; image is centered on panel and the remaining active area is filled with black)
1440x900 60Hz
1680x1050 60HzÁngulo de visión
Horizontal: ±88° o 176° total / Vertical: ±88° o 176° total
Cantidad de colores
16.7 millones
Brillo (tipico)
LCD Panel: 700 nits
Optical: 630 nitsTiempo total de respuesta (tipico)
6 msec
Radio de contraste
5000:1
Interface táctile
USB
Pantalla en pantalla (OSD)
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Information, MDC Protocol, Support and Help, System Temperature and ExitFormato de entrada de video
Analog VGA, HDCP-capable HDMI 1.3, Display part 1.1a
Entrada del conector para video señal
Female DE-15 for Analog VGA
HDMI Type A receptacle Display part 1.1a ConnectorConector de entrada de audio
3.5 mm TRS jack
Rango de señal de la entrada de audio
1 Vrms max. stereo signal (standard PC line out)
Conector de salida de los auriculares
3.5 mm TRS jack
Altavoces
Internal Speakers: 4x5 W stereo speakers, Configurable for stereo in portarite or landscape
Fuente de alimentación
Type: Internal AC
Conector de entrada de audio
IEC 60320 C14
Voltaje de entrada
100-240 VAC, 50/60Hz
Frecuencia de entrada
Horizontal: 31.5-73 kHz / Vertical: 47-63 Hz
Consumo de energía (típico)
Monitor only (at 110V/60Hz):
ON: 145.0W; SLEEP: 13.5W; OFF: 0.5W
Monitor only (at 230V/50Hz):
ON: 149.0W; SLEEP: 14.5W; OFF: 0.8W
Monitor with ECMG2B-i5 Computer Module (at 100V/60Hz):
S0 – ON, max audio
100% CPU load: 165W; S3 – STANDBY: 13W; S5 – OFF: 11WDimensiones
62.8" x 36.2" x 3.5" / 1594 mm x 921 mm x 89 mm
Dimensiones de la caja de envio
70.1" x 43.3" x 14.4" / 1780 mm x 1100 mm x 365 mm
Peso sin empaque
Without computer module: 131 lbs / 59.4 kg
With computer module: 149 lbs / 61.6 kgPeso con empaque
Without computer module: 162 lbs / 73.4 kg
Temperatura de operación
0°C to 40°C / 32°F to 104°F
Temperatura de almacenamiento
-20°C to 50°C / -4°F to 122°F
Humedad
Operating: 20-80%
Storage: 10-90%
noncondensingOpciones de montaje
VESA 4-hole Mount per MIS-F, 400 x 400, 8mm
MTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
50.000 horas demostradas
Garantía
3 años
Aprobaciones y declaraciones reglamentarias
Without RFID: CB, UL, cUL, FCC Class A, CE Class A, VCCI Class A, IC, C-TICK Class A, CCC, Russia & CIS GOST, NOM, KC, BSMI, e-standby
With RFID: UL, FCC(US) Class A, CE(Europe) Class AAccesorios opcionales IDS
i3 3.4 GHz ECMG2 - Sin sistema operativo para IDS 01 Series - Elo P/N: E001292
i3 3.4 GHz ECMG2 - Windows 7 para la serie IDS 01 - Elo P/N: E001293
i3 3.4 GHz ECMG2 - Windows 8.1 para IDS 01 Series - Elo P/N: E001294
i5 3.7 GHz ECMG2 - No OS para IDS 01 Series - Elo P/N: E001295
i5 3.7 GHz ECMG2 - Windows 7 para IDS 01 Series - Elo P/N: E001296
i5 3.7 GHz ECMG2 - Windows 8.1 para IDS 01 Series - Elo P/N: E001297
i7 4,0 GHz ECMG2 - Sin sistema operativo para IDS 01 Series - Elo P/N: E001298
i7 4.0 GHz ECMG2 - Windows 7 para IDS 01 Series - Elo P/N: E001299
i7 4.0 GHz ECMG2 - Windows 8.1 para IDS 01 Series - Elo P/N: E001300
Kit de cámara web - Elo P/N: E688656
Adaptador NFC - Elo P/N: E918074
Kit OPS - Elo P/N: E102270
Caja de control OSD - Elo P/N: E483757
Kit de cable de repuesto - Elo P/N: E000263
Wireless Adapter Key (USB) - Elo P/N: E249774Soportes, monturas y kits
Wall-mount Kit - Elo P/N: E785667
Stand opcional
E448725
