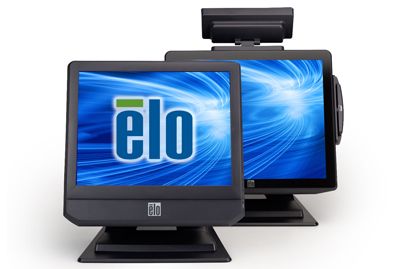

B-Series 15" and 17" Touchcomputer (Discontinued May 2016)
Cómo comprar

Overview

The new B-Series Rev.B 15-inch and 17-inch All-in-One touchcomputers continue to bring the same style, flexibility and functionality to point-of-sale, point-of-service, retail and hospitality businesses as the previous version, but now with higher performance and more features. They are designed with the future in mind, allowing easy serviceability of the main components and excellent performance. The fan-less B2 models utilize the latest Intel® 1.86GHz Atom™ Dual-Core N2800 processors, or for higher performance, the fan-cooled B3 models utilize the 3rd Generation Intel Core™ i3 3.3GHz i3-3220 (Ivy Bridge) processors with Intel HD2500 graphics. With a wide array of field-installable peripherals, spill-resistant sealing and a range of input/output port connection options, the B-Series Rev.B models are versatile and powerful.

The new Intel Dual-Core Atom and 3rd Generation Core i3 processors fit any POS application. Also new for the B-Series Rev.B models are twice the standard memory and twice the hard disk drive (HDD) storage capacity - now with 2GB DDR3 RAM and a 320GB advanced format HDD standard across all models. For customers who require additional performance or more robust storage capabilities, the addition of a 2GB or 4GB RAM option kit or second 320GB hard drive can significantly improve the performance or expand the data storage of the B-Series Rev.B touchcomputers.

The Elo B-Series AiO’s are available with industry-leading touchscreen technologies from Elo including our new iTouch Plus multi-touch, zero-bezel surface acoustic wave and our proven industry-leading AccuTouch no-bezel 5-wire resistive. The B-Series is RoHS compliant, Energy Star 5.2 certified, and includes an enclosure design that is spill-resistant, protecting the unit from liquid drips and spills.

Customer friendly, field-installable peripherals include: magnetic strip reader (MSR) for reading credit cards, ID cards, loyalty cards, etc., a rear-facing VFD display for transaction verification, a biometric fingerprint reader for added security, and a bracket kit perfect for attaching the Elo Touch Solutions 0700L 7-inch touch display (or any 2nd LCD) for advertising or customer transaction information.

Typical applications for the B-Series AiO touchcomputers include POS (point-of-service), POI (point of information), loyalty systems, kiosk information systems, industrial automation and internet access points, just to name a few.

Features
  • Clean and neat with only a single wire for power required in many applications - Improved aesthetics, ease of integration into any environment or application
  • Full range of standard connectivity ports to add functionality (USB, serial, etc) - Allowing for easy integration to any legacy or new install environments
  • Special USB ports around periphery of monitor provide the ability to integrate peripherals with no external wiring - Clean look, added security; no accidental disconnects
  • Choice of high-performance processor configurations - Facilitates a wide range of computing options, including low cost and high performance
  • Choice of industry-leading touch technologies including iTouch Plus (zero-bezel multi-touch surface acoustic wave) and AccuTouch “no-bezel” (resistive) - Touch options for any application or environment; zero-bezel designs offer seamless, edge-to-edge design for a sleek appearance that is easy to clean and maintain
  • "Designed for touch" from the ground-up; stable stand and tilt able display with VESA mount for table-top, wall or pole mounting options - Durability to withstand the rigors of use in public environments with mounting options that complement a variety of configurations
  • Field-installable peripherals - Minimizes downtime with peripherals that are easily installed in the field rather than factory
  • Excellent cable management and cables hidden from view - Prevents accidental disconnection and gives a clean, professional look
  • Energy Star 5.2 certified - Lower energy costs and better for the environment
  • Worldwide agency approvals - Meets local agency approvals, as required in many countries
  • 3-year warranty plus Elo quality and reliability - Satisfaction and peace of mind from 40 years of experience built into all products

Presupuesto

  • Técnico

    Número(s) de Parte(s)

    AccuTouch (USB, Worldwide) - E597077, E272450
    AccuTouch (USB, Worldwide) - E594735, E136113
    AccuTouch (USB, Worldwide) - E341238, E630472
    IntelliTouch ZB DT (USB, Worldwide) - E623500, E535998
    IntelliTouch ZB DT (USB, Worldwide) - E130107, E431446
    IntelliTouch ZB DT (USB, Worldwide) - E006103, E309211
    AccuTouch (USB, Worldwide) - E051651, E933807
    AccuTouch (USB, Worldwide) - E041642, E427078
    AccuTouch (USB, Worldwide) - E719553, E182884
    IntelliTouch ZB DT (USB, Worldwide) - E792415, E120738
    IntelliTouch ZB DT (USB, Worldwide) - E010116, E319977
    IntelliTouch ZB DT (USB, Worldwide) - E406366, E469992

    Color del empaque

    Gris oscuro

    Tecnología y capacidad táctil

    Resistiva de 5 hilos (AccuTouch®) - Táctil simple
    SAW Sin bisel (SecureTouch® ondas acústicas de superficie) - Táctil dual

    Procesador

    Intel 1.86GHz Atom Dual-Core N2800
    1MB L2 Cache
    2.5 GT/s Direct Media Interface (DMI)

    BIOS

    AMI

    Memoria (RAM)

    2GB 1333MHz DDR3 SO-DIMM on 1 of 2 slots
    (Expandable to 4GB maximum on 2 slots)

    Drive para el disco duro

    320GB 2.5" 5400RPM Advanced Format (4K)

    Chipset

    Intel NM10 Express

    Tamaño de la diagonal

    15'' diagonal, matriz activa TFT LCD (LED)

    Botones de control

    Controls (bottom): Power, brightness up, brightness down, volume up, volume down
    Security lockouts:Power and control buttons lock

    Relación de aspecto

    4:3

    Área activa

    12.0" x 9.0" / 304.0mm x 228.0mm

    Resolución

    1024 x 768 @ 60Hz

    Cantidad de colores

    16.7 millones

    Brillo (tipico)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    IntelliTouch ZB DT: 225 nits

    Tiempo total de respuesta (tipico)

    8 msec

    Radio de contraste

    700:1

    Ángulo de visión

    Horizontal: ±70° o 140° total / Vertical: 65°/60° o 125° total

    Puertos USB

    6 x USB 2.0 (4 on I/O, 1 x USB Side Access, 1 x USB Hidden/Protected)
    Additional internal ports available for optional Elo peripherals

    Puerto seriales

    2 x NATIVE RS-232 Serial (standard)

    Puerto Ethernet

    1 x LAN RJ45 (Gigabit)

    Sin cableado / wireless

    Optional USB wireless kit available (802.11b/g/n)

    Puerto para cajón/caja de dinero

    Built-in 12V/24V Cash Drawer Port (24V default; selectable via jumper)

    Salida de video adicional

    1 x 2nd VGA out port

    Puertos de audio

    1 x 3.5mm line-in
    1 x 3.5mm line-out
    1 x 3.5mm mic-in

    Altavoces

    Two 2W internal speakers

    sistema operativo

    Sin sistema operativo
    Windows XP Professional Service Pack 3 (32-bit only)
    Windows 7 Professional (32-bit only)

    Lenguajes/Idiomas

    Windows XP - 24 Grupos de idiomas; Windows 7 - 35 Grupos de idiomas

    Fuente de alimentación

    External 12VDC universal-type power supply brick
    AC input voltage: 100-240VAC
    Input frequency: 50-60Hz
    Maximum output power: 150W (Max draw: 170W)

    Voltaje de entrada

    100-240VAC

    Consumo de energía (típico)

    47W

    Dimensiones de la computadora táctil Max incluyendo el stand

    14.0" x 14.3" x 10.5" / 355mm x 364mm x 267mm

    Dimensiones de la computadora táctil Max sin el stand

    14.0" x 13.1" x 3.6" / 355mm x 332mm x 92mm

    Dimensiones de la caja de envio

    17.4" x 21.9" x 10.2" / 443mm x 555mm x 258mm

    Peso (con soporte)

    17.9lbs / 8.1kg

    Peso (sin soporte)

    13.0lbs / 5.9kg

    Peso con empaque

    24.5lbs / 11.1kg

    Temperatura de operación

    0°C to 35°C / 32°F to 95°F

    Temperatura de almacenamiento

    -20°C to 60°C / -4°F to 140°F

    Humedad

    Operating: 20% to 80%
    Storage: 5% to 95%

    Aprobaciones y declaraciones reglamentarias

    UL/cUL
    FCC
    TUV
    CE
    CB
    Mexico COC
    Argentina S-mark (power brick only)
    C-Tick
    VCCI
    CCC
    Energy Star 5.2

    Reloj en tiempo real

    Batería de iones de litio

    MTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)

    50.000 horas demostradas

    Opciones de montaje

    100mm VESA mount or secure base to tabletop or desktop

    Garantía

    3 años

    Capacidad de sellado

    Touchscreen sealed to sub-bezel (AccuTouch, iTouch Plus)
    Touchscreen sealed to LCD (all)

    Cables de energía

    North American and European power cables included

    Otras características

    Serviceable internal components
    Removable base with 100mm VESA mounting
    Threaded holes on bottom of base for mounting
    Kensington security lock

    Opciones de mejoría

    320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069

    Opciones de expansión

    Wireless Adapter (USB, 802.11 b/g/n)

    Cables de energía AC de tipo E-Series ordenando información

    América del Norte P/N: E042259
    Europa/Corea P/N: E690013
    China N/P: E030476
    Reino Unido N/P: E235317
    Taiwán N/P: E637694
    Argentina N/P: E98419
    Japón N/P: E109553
    Japón adaptador de 3 pines a 2 pines N/P: E351985

    Fuente de alimentación de reemplazo de CC

    12V DC power brick, part number E806884, is available at additional cost.

    Pluma Stylus IntelliTouch Opcional

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch or IntelliTouch ZB surface wave touch technology. Part number D82064-000, available at additional cost.

    Optional Accessories/Peripherals

    Second 320GB Hard Disk Drive (HDD) Kit
    Second HDD/SSD Mounting Bracket Kit Only
    2GB DDR3 SODIMM Memory Kit
    4GB DDR3 SODIMM Memory Kit
    Magnetic Stripe Reader (MSR)
    Customer Display (2x20 VFD)
    7" LCD Customer Display (with or without touch)
    Mouting Bracket Kit - Elo P/N: E750095)
    Second Rear-Facing LCD Mounting Bracket Kit
    Biometric Fingerprint Reader (FPR)
    Wireless Adapter (USB, 802.11b/g/n)

    Magnetic Stripe Reader (MSR)

    The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port; no external power is needed. The MSR features are:

    Reads up to 3 tracks of information
    Bidirectional swipe reading
    Superior reading of high jitter, scratched, and worn MagStripe cards
    Reliable for over 1,000,000 card swipes
    Reads ISO7811, AAMVA, and most other card data formats
    PC software makes configuration changes easy
    Swipe speeds from 3 to 60 inches per second
    Interfaces: USB-IDTech-HID
    Fully supports USB 2.0
    Part Number: E545781
