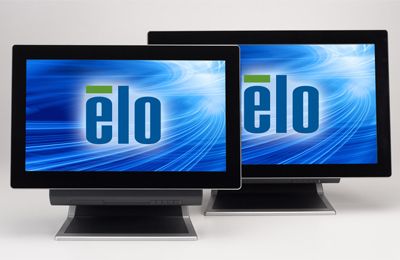

C3 Rev.A Touchcomputer (Discontinued June 2013)
Cómo comprar

Overview

The Elo C-Series Rev.A All-in-One touchcomputer platform leverages the same quality, performance, configurations and design as our popular B-Series 15” and 17” POS touchcomputer systems. The C-Series Rev.A offers bigger, brighter displays in a wide-aspect ratio. This makes the C-Series Rev.A an excellent choice for retail point-of-information, countertop product demonstration or customer information systems. In addition, hospitality host and seating systems that depend on an accurate display of restaurant layouts can utilize the wide screen of the C-Series Rev.A and the additional screen space available to display their seating/floorspace.

The C-Series Rev.A touchcomputers bring flexibility with your choice of configuration and connectivity, serviceability with easy access to key components, and a choice in processing power. In addition, an array of field-installable peripherals, spill-resistant sealing, and a selection of input/output port connection options make the C-Series Rev.A both versatile and powerful. It is designed with your future in mind, allowing easy field serviceability of all of the main components.

The C-Series Rev.A is engineered for flexibility, with optional memory and storage configurations, as well as scalable computing power featuring two high-performance processor configurations: Cool and Quiet C2 Fan-less Intel Atom Dual-Core 1.66 GHz or Performance Ultra C3 Fan-cooled Intel Core 2 Duo 3.0 GHz

The flexibility, serviceability and performance of the C-Series Rev.A are rare in commercial all-in-one touchcomputers. In a stylish, compact design, the C-Series Rev.A provides highly configurable, ruggedized touchcomputers, in two screen sizes: 19-inch and 22-inch, plus the choice of industry-leading Elo touch technologies. The C-Series Rev.A touchcomputer family has been developed to meet the demanding needs of a wide variety of hospitality and retail point-of-sale (POS), point-of-information (POI), point-of-service, point-of-presence, hospitality host station, kitchen systems, digital signage, customer loyalty, internet access sites, bedside entertainment and home automation and control.

Elo C-Series Rev.A touchcomputers are offered with your choice of the following operating systems (OS): Windows POSReady 2009, Windows 7 or no OS. Models with the IntelliTouch® Dual-touch product technology and Windows 7 support Windows 7 multi-touch functionality. Other touch product technologies with Windows 7 Operating System support single-finger gestures only.

Other features
  • 19" 16:9 High Definition widescreen with high contrast LCD display - Provides a never before seen HD interactivity POI solution
  • Single Image for POI 19" & 22" and POS 15" & 17" (B-Series) - Ease end point management and decrease Total Cost of Ownership (TCO); enable single image per location
  • Full range of standard connectivity ports plus expansion ports to add functionality (serial, USB, HDMI and PCI-E optional I/O) - Allowing for easy integration to any legacy or new install environment
  • Integrated peripherals with no external wiring - Easy installation, clean look, added security
  • Choice of high-performance processor configurations - Facilitates a wide range of computing options, including low cost and high performance
  • Supports industry standard low profile PCI-E (PCI Express) expansion cards - Outstanding configurability/customization options to meet all your connectivity needs
  • Second hard drive option for expanded storage or RAID configuration - Enables extra storage capacity or disk mirroring (RAID) for data protection
  • "Designed for touch" from the ground-up; stable stand and tilt able display with VESA mount for table-top, wall or pole mounting options - Stability to withstand the rigors of use in a public environment; mounting options to complement store layout and customer traffic
  • 3 year warranty plus Elo quality and reliability - Satisfaction and peace of mind from nearly 40 years of experience built into all products

Presupuesto

  • Técnico

    Número(s) de Parte(s)

    19" Displays:
    AccuTouch (Antiglare, Worldwide) - E275658
    AccuTouch (Antiglare, Worldwide) - E429930
    AccuTouch (Antiglare, Worldwide) - E647504
    IntelliTouch Dual-Touch (Antiglare, Worldwide) - E141537
    IntelliTouch Dual-Touch (Antiglare, Worldwide) - E299954
    IntelliTouch ZB (Antiglare, Worldwide) - E285531
    IntelliTouch ZB (Antiglare, Worldwide) - E814577
    IntelliTouch ZB (Antiglare, Worldwide) - E759601

    22" Displays:
    AccuTouch (Antiglare, Worldwide) - E208024
    AccuTouch (Antiglare, Worldwide) - E766382
    AccuTouch (Antiglare, Worldwide) - E697062
    IntelliTouch Dual-Touch (Antiglare, Worldwide) - E263350
    IntelliTouch Dual-Touch (Antiglare, Worldwide) - E165988
    IntelliTouch ZB (Antiglare, Worldwide) - E987622
    IntelliTouch ZB (Antiglare, Worldwide) - E388946
    IntelliTouch ZB (Antiglare, Worldwide) - E323747

    Color del empaque

    Gris oscuro

    Tecnología y capacidad táctil

    Resistiva de 5 hilos (AccuTouch®) - Táctil simple
    SAW (IntelliTouch® Surface Acoustic Wave) - Táctil dual
    SAW Sin bisel (IntelliTouch® de ondas acústicas de superficie) - Táctil simple

    Procesador

    C2 Rev. A models:
    Intel 1.66GHz Atom Dual-Core D510
    1MB L2 Cache
    533MHz System Bus

    C3 Rev. A models:
    Intel 3.0GHz Core 2 Duo E8400
    6MB L2 Cache
    1333MHz System Bus

    BIOS

    AMI

    Memoria (RAM)

    C2 Rev. A models:
    2GB Low-Profile DDR2 DIMM
    on 1 of 2 slots
    (Expandable to 4GB max1 on 2 slots)

    C3 Rev. A models:
    2GB Low-Profile DDR2 DIMM
    on 1 of 1 slot
    (Replaceable with 4GB max on 1 slot)

    Drive para el disco duro

    160GB 2.5” SATA HDD

    Chipset

    C2 Rev. A models:
    Intel NM10 Express

    C3 Rev. A models:
    Intel G41 Express

    Tamaño de la diagonal

    19'' diagonal, matriz activa TFT LCD (LED)

    Botones de control

    Controls: menu, up, down, select, power
    Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall, power button
    Languages: English, French, Italian

    Relación de aspecto

    16:9

    Área activa

    19" models: 16.1" x 9.1" / 409.8mm x 230.4mm
    22" models: 18.8" x 10.6" / 476.6mm x 268.1mm

    Resolución

    19" models: 1366 x 768 @ 60Hz
    22" models: 1920 x 1080 @ 60Hz

    Cantidad de colores

    16.7 millones

    Brillo (tipico)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    IntelliTouch ZB: 225 nits
    IntelliTouch Dual Touch: 225 nits

    Tiempo total de respuesta (tipico)

    5 msec

    Radio de contraste

    1000:1

    Ángulo de visión

    Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

    Puertos USB

    6 x USB 2.0 (4 on I/O, 2 x USB Front Access)
    Additional internal ports available for optional Elo peripherals

    Puerto seriales

    2 x USB-to-Serial RS-232 (standard)

    Puerto Ethernet

    1 x LAN RJ45 (Gigabit)

    Sin cableado / wireless

    Optional USB wireless kit available (802.11b/g/n)

    Puerto para cajón/caja de dinero

    Optional cash drawer kit available (12V/24V default; selectable via jumper)

    Salida de video adicional

    C2 Rev. A models: Optional 2nd VGA port expansion card
    C3 Rev. A models:Standard HDMI out / Optional 2nd VGA port expansion card

    Puertos de audio

    1 x 3.5mm line-in
    1 x 3.5mm line-out
    1 x 3.5mm mic-in

    Altavoces

    Two 2W internal speakers

    sistema operativo

    Sin sistema operativo
    Windows POSReady 2009
    Windows 7 Professional (32-bit only)

    Lenguajes/Idiomas

    Windows 7 - 35 Grupos de idiomas
    Windows POSReady 2009 – 32 Language groups

    Fuente de alimentación

    External 12VDC universal-type power supply brick
    Input frequency: 50-60Hz
    Max output power: 150W (Max. draw: 170W)

    Voltaje de entrada

    100-240VAC

    Consumo de energía (típico)

    C2 Rev. A models: 19" models: 54W / 22" models: 54W
    C3 Rev. A models: 19" models: 113W / 22" models: 113W

    Dimensiones de la computadora táctil Max incluyendo el stand

    19" models: 18.7" x 14.9" x 8.9" / 475mm x 380mm x 226mm
    22" models: 21.2" x 15.3" x 8.9" / 540mm x 389mm x 226mm

    Dimensiones de la computadora táctil Max sin el stand

    19" models: 18.7" x 11.9" x 3.8" / 475mm x 302mm x 98mm
    22" models: 21.2" x 13.1" x 3.8" / 540mm x 333mm x 98mm

    Dimensiones de la caja de envio

    19" models: 23.2" x 19.5" x 14.2" / 590mm x 495mm x 360mm
    22" models: 26.0" x 20.3" x 14.2" / 600mm x 516mm x 360mm

    Peso (con soporte)

    C2 Rev. A models:
    19" models: 20.1 lbs / 9.1kg
    22" models: 22.2lbs / 10.1kg

    C3 Rev. A models:
    19" models: 20.6lbs / 9.3 kg
    22" models: 22.7 lbs / 10.3 kg

    Peso (sin soporte)

    C2 Rev. A models:
    19" models: 16.1 lbs / 7.3 kg
    22" models: 18.3lbs / 8.3kg

    C3 Rev. A models:
    19" models: 16.6lbs (7.6kg)
    22" models: 18.7 lbs / 8.5 kg

    Peso con empaque

    C2 Rev. A models:
    19" models: 30.1 lbs / 13.6 kg
    22" models: 32.7lbs / 14.9kg

    C3 Rev. A models:
    19" models: 30.9lbs / 14.0kg
    22" models: 33.0 lbs / 15.0 kg

    Temperatura de operación

    32°F to 95°F / 0°C to 35°C

    Temperatura de almacenamiento

    -22°F to 140°F / -30°C to 60°C

    Humedad

    Operating: 20% to 80%
    Storage: 5% to 95%

    Aprobaciones y declaraciones reglamentarias

    UL/cUL, FCC, TUV, CE, NOM COC, AR S-Mark, GOST-R, C-Tick, VCCI, CB, MPR II, 1PX1

    Reloj en tiempo real

    Batería de iones de litio

    MTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)

    50.000 horas demostradas

    Opciones de montaje

    100mm VESA mount or secure base to tabletop or desktop

    Garantía

    3 años

    Capacidad de sellado

    Touchscreen sealed to bezel (IntelliTouch Plus)
    Touchscreen sealed to sub-bezel (AccuTouch, iTouch)
    Touchscreen sealed to LCD (all)
    IPX1

    Cables de energía

    North American and European power cables included

    Otras características

    Serviceable internal components
    Removable base with 100mm VESA mounting
    Threaded holes on bottom of base for mounting
    Kensington security lock

    Opciones de expansión

    Wireless Adapter (USB, 802.11b/g/n)
    Cash Drawer Port (12V/24V) Expansion Card
    Second VGA Port Elo expansion card
    Modem PCI-E Card
    Parallel Port PCI-E Card

    Fuente de alimentación de reemplazo de CC

    12V DC power brick, part number E806884, is available at additional cost

    Pluma Stylus IntelliTouch Opcional

    D82064-000, available at additional cost

    Optional Accessories/Peripherals

    Second 160GB Hard Disk Drive (HDD)
    Second HDD/SSD Mounting Bracket Kit only
    2GB Low-Profile DDR2 Memory DIMM Kit
    4GB Low-Profile DDR2 Memory DIMM Kit
    Magnetic Stripe Reader - Elo P/N: E545781
    Customer Display (2x20 VFD) - Elo P/N: E879762
    Biometric Fingerprint Reader (FPR) - Elo P/N: E375206

    Magnetic Stripe Reader (MSR)

    The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port; no external power is needed. The MSR features are:
    - Reads up to 3 tracks of information
    - Bidirectional swipe reading
    - Superior reading of high jitter, scratched, and worn

    MagStripe cards
    - Reliable for over 1,000,000 card swipes
    - Reads ISO7811, AAMVA, and most other card data formats
    - PC software makes configuration changes easy
    - Swipe speeds from 3 to 60 inches per second
    - Interfaces: USB-IDTech-HID
    - Fully supports USB 2.0
    - Part number: E545781
